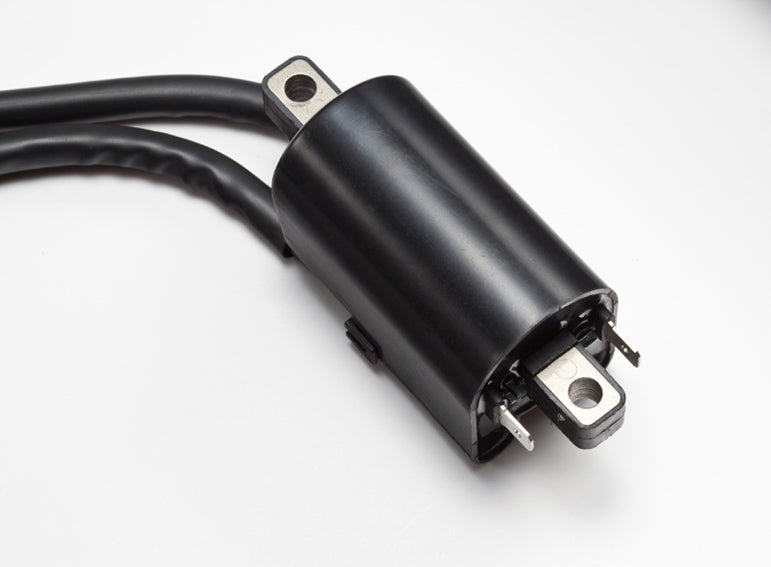

6-Volt Dual Lead Ignition Coil

6-Volt Dual Lead Ignition Coil

by Tri-Spark
$82.50 - $82.50
$82.50
$82.50 - $82.50
$82.50

Tri-Spark coils have extra windings using heavier wire and a high grade core for improved spark energy and duration.



Product Description

This 6-Volt Dual Lead coil suits two spark plugs per cylinder installation in combination with the Tri-Spark Classic Twin ignition system.

Primary resistance 1.8 Ohms.

HT leads 60cm long included - Spark plug caps sold separately, two caps per coil required.

Mounting hole spacing is 90mm.  See picture for the dimension drawing of the dual lead coil.

Warning - These coils discharge with a very high voltage so extra care must be taken to always have a spark plug connected to the HT output.

Specifications

IGC-2006

6-Volt coil

Primary resistance 1.8 Ohms.

Mounting hole spacing is 90mm.  See picture for the dimension drawing of the dual lead coil.

They do not have a negative or positive primary terminal, you can wire them either way.

Compatibility:

  • British twin cylinder bikes with twin plug heads using Classic Twin ignition, two required
  • Compass Ignition for BMW Dual Plug Heads 1970 - 1979  two required.
  • Can be used on a 1968 BMW R69 in place of the magneto - still using the standard points and condenser (read our blog article for more information).
