This advanced system replaces your stock points ignition, delivering:
- Precise timing for smooth performance
- Easy starting with a powerful spark
- Improved throttle response
- An accurate advance curve for optimal efficiency
Effortless Installation
- Plugs directly into the original wiring loom—no complex rewiring
- Eliminates the auto-advance unit, a common source of issues
- No more points maintenance—just install and ride
- Massive spark energy boost for easy starts and smooth operation
High-Performance Coil Included
Your Compass Ignition comes with a 12-Volt Dual Lead Coil, complete with leads and caps. This high-output coil doubles the spark voltage compared to the original twin-coil system, yet fits neatly in the stock mounting location.

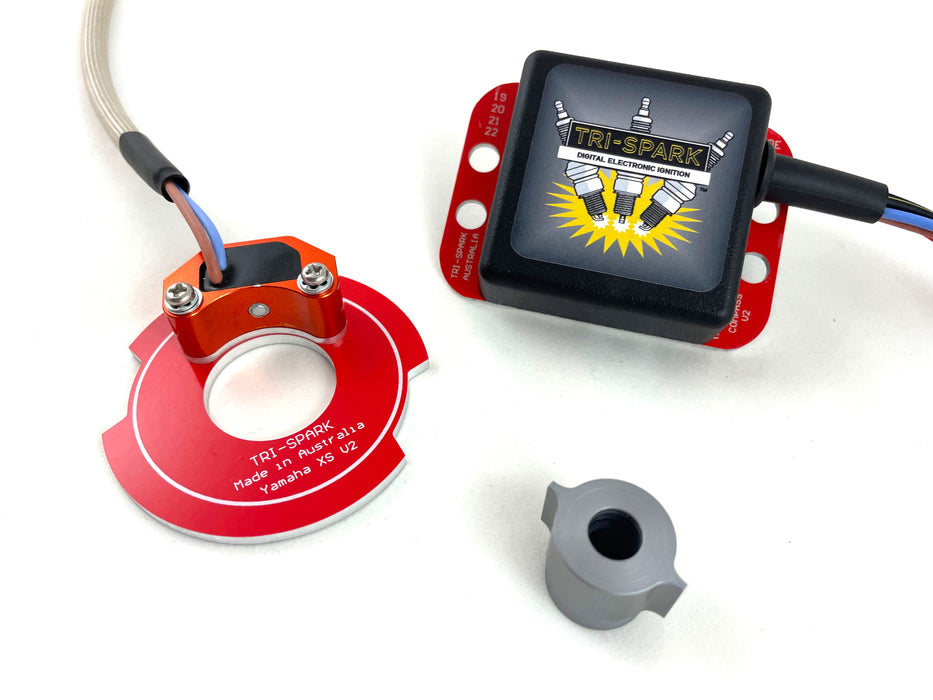

Advanced Control Unit – Built for Durability
Designed and manufactured in Adelaide, Australia, the compact control box is easy to tuck away under the fuel tank. It’s fully sealed to resist vibration and moisture and features a high-speed processor for flawless timing control—no delays, no jitter.
Extreme Protection Against Electrical Faults
⚡ Reverse polarity protection—prevents damage if wires are crossed
⚡ Spike protection—shields against high-voltage surges
⚡ Continuous over-voltage protection—keeps your system safe
⚡ Pickup inputs protected—handles miswiring without harm
The unit is even repairable, thanks to a removable sealing compound, making long-term maintenance simple.
Heavy-Duty Pickup Unit
The pickup unit replaces the original points plate and is built to withstand the engine’s extreme conditions. Made in Adelaide, South Australia, it features:
- 300°C-rated magnets
- 200°C-rated winding wire
- CNC-machined aluminum frame & backing plate
- Silicone-insulated lead wires for durability
With no active components inside and a flexible sealant for thermal cushioning, it’s engineered for long life and reliability.
Why “Compass”?

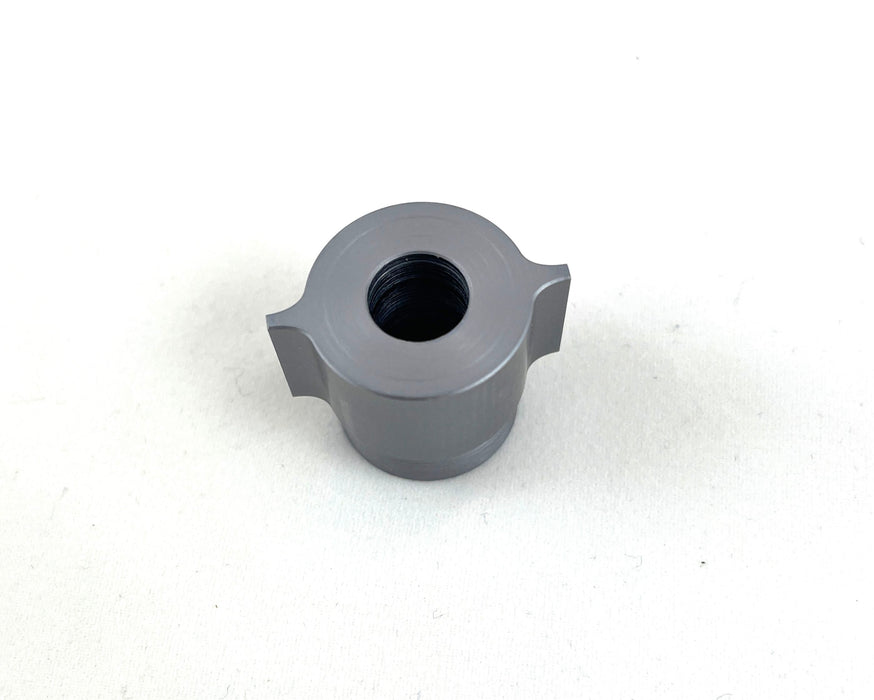

The system gets its name from the unique twin-point rotor design, machined with precision for unmatched timing accuracy and stability.
The Ultimate Upgrade for Yamaha XS650 Enthusiasts
If you love riding your classic Yamaha XS650, the Compass Ignition delivers reliability, performance, and ease of use—all in one package.
📽️ Watch the video above to see the benefits in action!
Compatibility & Re-Phased Engines
This system is designed for stock XS650s with a 360° crank, but we also offer a Compass Ignition for rephased 277° crankshafts. Select '277 Rephased Crankshaft' from the drop down box below. We provide a modified rotor with the the Compass Ignition for rephased 277° crankshafts.
Looking for an ignition for a different crank degree - please enquire.
For an additional rephased rotor, check out our Rotor for Rephased Crank Yamaha XS650.
